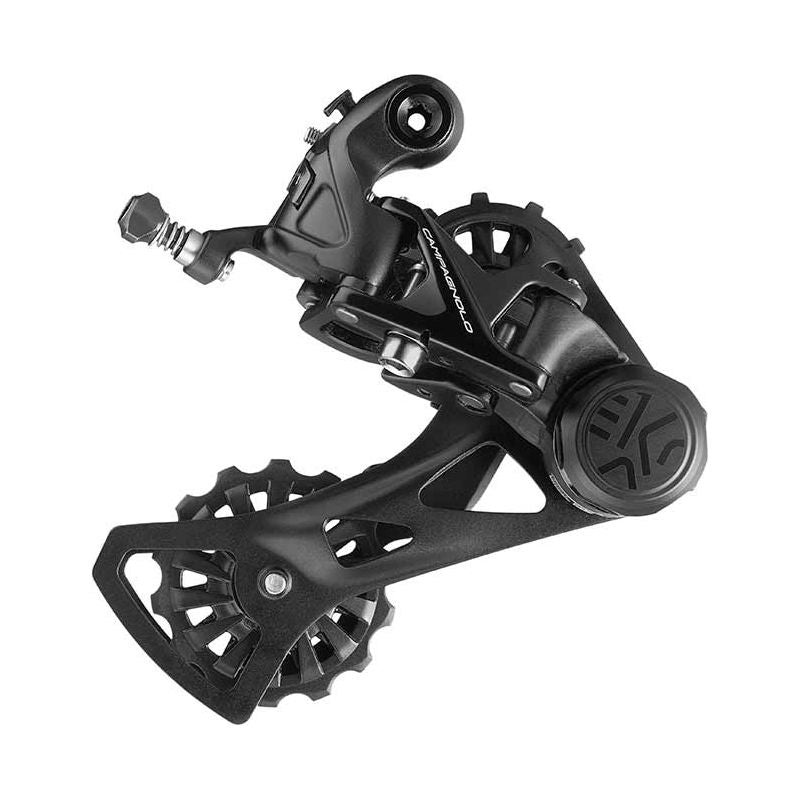

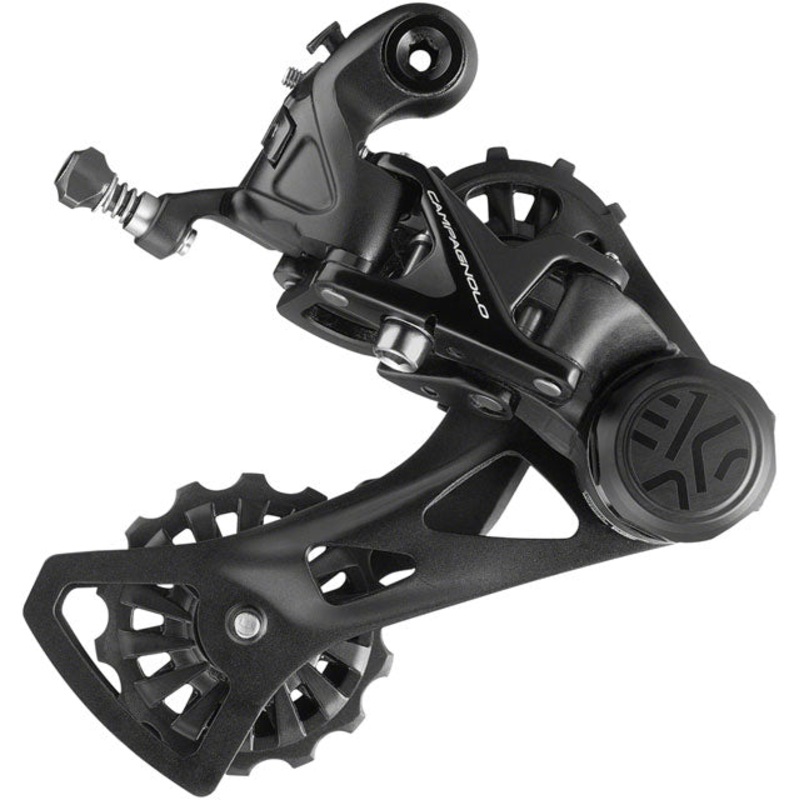

The Campagnolo EKAR Rear Derailleur is designed for the 1×13-speed EKARndrivetrain with a gravel-orientated performance & build.

Product Details:

• 2D parallelogram trajectory offers precise mechanical movement for 13 sprockets
• Carbon fiber-reinforced polyamide and anodized 7075 and 6082 alloys are lightweight, strong, and durable
• High grade polymer pulley wheels (12T upper, 14T lower) allow for smooth chain running and secure retention
• Includes clutch lock for easy wheel removal
• Stainless steel bolts for strength and long-term resilience on gravel

Specifications:

• Cage Length: Medium
• Chain Wrap Capacity (teeth): 34
• Color: Black
• Drivetrain Speeds: 13
• Largest Cog: 44
• Rear Der/Shifter Compatibility: Campy EKAR
• Rear Derailleur Mount Type: 10×1 Standard
• Weight: 275
• UPC: 8053340455421
• MPN: RD21-EK13

The Ekar rear derailleur is a completely new development for Campagnolo’s gravel group.
The rear derailleur geometry was designed in such a way that the rear derailleur with its medium-length cage works perfectly with the 3 available Ekar cassettes.
The enlarged rear derailleur rollers with 12 and 14 teeth, in conjunction with a vibration damper, ensure smooth and safe chain travel at all times.
For an easy wheel change, the rear derailleur can be decoupled from the spring tension via a cage lock in a vertical position.
The complex rear derailleur consists of a total of 70 individual parts made of aluminum 7075, aluminum 6082 and carbon composite.
For the rear derailleur screws, Campagnolo uses stainless steel for maximum durability.

Technical specifications:
Material: aluminum
Version: 13-speed, medium-length cage, approx. 75 mm jockey wheel center distance
Compatibility: Campagnolo road bike shifters
Total capacity: na
max. difference in front: only suitable for 1x cranks
max. largest sprocket: 44 teeth
min. largest sprocket: 36 teeth
max. smallest sprocket: 10 teeth
min. smallest sprocket: 9 teeth
Colour: black, carbon
Weight according to the manufacturer: 275g
Weight weighed: 290g
